智能横编机参数

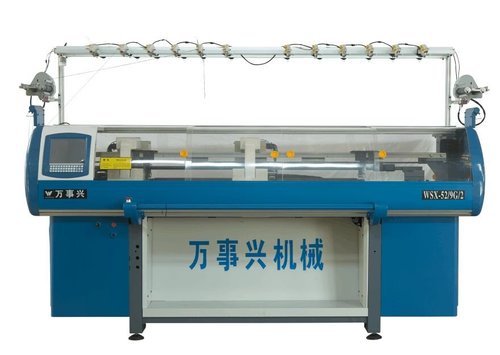

WSX智能横编机
WSX Intelligent horizontal knitting machine
产品参数
序号
名称
内容
1
针距
Gauge
9G、357G(变针距)
9G,357 multi Gauge
2
编织幅度
Knitting width
52(英寸)
52 inches
3
编织速度
Knitting speed
32段选择,*高速度长行程(254mm)达到39次/min,短行程(43mm)达到57次/min;采用AC伺服马达控制,伺服马达利用精密的回授控制与结合高速运算能力的数字信号处理器(DSP),控制IGBT产生精确电流输出;
Controlled by servo motor with 32 sections speed optional, the Max. Speed(254mm) can reach to 39times/Min, the Min.(43mm) can reach to 57 times(min). Serve motor will use the precise backward control and link up the high speed operation ability of digital signal processor(DSP),which control IGBT to produce the accurate output electric current.
4
编织系统
Knitting system
 双机头/单系统;
double carriages /single system
5
编织功能
Knitting function
 翻针、吊目、挑孔、嵌花、提花、明收针、暗收针、及其他规则花型编织;Knit, miss, tuck, transfer, pointel, intarsia, jacquard, hide, or apparent shaping and other regular or irregular patterns.
6
针床移位
Racking
 采用AC伺服马达控制,移针范围达2英寸,同时具有精确的微调功能;Controlled by servo motor racking within 2 inches and with fine adjusting function.
7
探针报警系统
Detect alarm system
 探针报警
Detect alarm
8
读针信号
Encode
 先进的编码器读针
Advanced encoder adopted.
9
翻针功能
Transfer cam
 三角复合式设计,单/双协同皆可单独或同时翻针,也可一系统编织,达到高效生产;
The transfer cam is compose designed, single or double cam system all can transfer which will achieve to high production efficiency knit.
10
线圈密度
Stitch density
 步进马达控制,32段密度选择,采用细分技术,可调范围:0—650度,更能准确的控制织物长短;
Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology 0—650,the stitch of the knitting products can be accurately controlled.
11
沉降片系统
Sinker system
 步进马达控制,可根据不同的织物进行调整,达到多种收针和放针效果;Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns.
12
起底装置
Take down roller
利用沉降片推压作用力来达到纱线不上浮顺利脱圈的目的,沉降片作用力可根据织物需要进行调整)
Using sinker push force to achieve the purpose of yarn not floating off smoothly, sinker force can be adjusted according to the fabric
13
剪线夹线装置
Trimming thread clamp device
由针板剪刀<包括4把剪刀,16把勾刀>和移动剪刀<包括勾线片,叉线片,移动剪刀>组成,分别利用机头三角和4个马达控制,程序指令可同步或分开进行,进一步提高工作效率,有效减少纱线浪费)
By the needle plate shears (including 4 pairs of scissors and 16 hook knives) and moving scissors (including cancel the piece, cross piece, moving scissors),Respectively use the carriage triangle and 4 pcs of motor to control. Program instruction can be synchronous or separately, to further improve the work efficiency, reduce waste yarn.
14
卷布系统
Take down roller
 电脑程序指令,步进马达控制,32段拉力选择,可调范围:0-100;Programmed instruction controlled by stepping motor,32 levels selection adjustable area is:0-100.
15
换色系统
Yarn carrier
 2*6组纱嘴配置在3支导轨的左右两侧,可在针床任何位置切换纱嘴(备特殊无虚线嵌花专用纱嘴装置供选购);
2*6 yarn carriers on each side of 3 guide rails, shift able on any needle position(Special line for special yarn mouth applique device for your choose to purchase)
16
保护系统
Protection
 当机器在动作过程中出现断纱、结头、浮纱、倒卷、片数结束、移床未归、撞针脚、程序错误等情况下,自动报警,并设有安全自锁保护装置;
The machine will automatically alarm if yarn-breaking, knots, floating, yarn rewind, end of knitting, fail of racking needle breakage and error programming occur, also set up the safety auto lock protect device.
17
控制系统
Controller
1、 屏幕采用LCD工业显示器,触摸屏图形化界面,传输方式采用USB及网络,系统扩展内存达1G,可同时存入大量花型文件,并可根据生产需要随时调出使用;
2、 监控画面:可显示各种工作参数和正在编织行的度目值,并在机器运转时随时进行调整,*大限度方便操作及节约时间;
3、 制版系统及控制系统(软件部分)升级方便,为无偿配置;
4、 多语言操作版本:支持中文、英文、阿拉伯等语言版本,同时还可根据客户需要进行设置所需语种;
1, Screen: Adopt LCD touch screen and figure interface, input device: USB storage 1G, A great amount of design files can be stored at the same time and they can be fetched out for use at any time as per production requirement.
2, Monitoring menu: each kind of operating parameter can be shown and it can be adjusted at any time when the machine is running, making conveniences for operations as much as possible.
3, Free design system is visual and easy to understand and software upgrade free of charge.
4, Multi language version: there are Chinese, English etc. language version, the other language version set up shall according to customers requirement.
18
电源
Power
单相220V,采用先进CMOS技术,在停电瞬间具有记忆及恢复功能Single-phase 220V and 3-phase 380V, adopt advanced CMO technology, having memorizing function at power shock stop.
